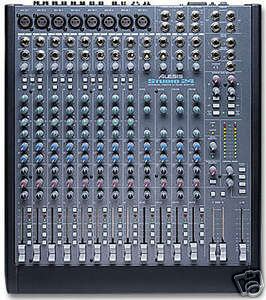

Alesis Studio 24 - Inline Monitor, 12 Channel Mixer

$

200

Studio 24
Recording Console with Inline Monitor

The Studio 24â„¢ is the best choice for eight-track studios needing an efficient, low cost, true recording console with excellent audio quality. Its inline design, similar to that of Alesis' acclaimed Studio 32 Console, lets you send eight audio signals to a recorder and monitor eight channels coming back from tape without re-patching.

The Studio 24 provides eight input channels for mono audio sources, and four stereo input channels for dual-channel devices like synthesizers, along with two stereo groups for submixes.

The Studio 24's eight hybrid/discrete phantom-powered mic preamplifiers are designed to meet the challenges of 20-bit digital recording, with excellent sonic quality, low noise (-128.5 dBm) and high headroom with more than 60dB of gain. Also, it provides eight individual XLR inputs, each with its own switchable direct output, making the Studio 24 perfect for applications that require you to route multiple audio sources simultaneously.

The Studio 24's EQ section provides low and high shelving controls at 80Hz and 12kHz, along with a sweepable mid-frequency EQ set to allow for greater control of crucial tonal elements in a mix. Effects and cue mixes are handled by four aux sends, two pre-fader and two post-fader, as well as two stereo aux returns.

Precise pan controls, solo switches, peak indicators and smooth 60mm true logarithmic faders are found on every channel, so you'll be in complete control for every step of tracking and mixdown. If you want to take complete advantage of your single-ADAT (or other eight track) recording system, the Studio 24 is the most cost-effective solution for studio-quality tracking and mixing.

Specifications:

• Frequency Response:  20Hz - 50kHz ± 0.5dB
• Equivalent Input Noise:  -128.5dBu
• THD+N:  MIC/LINE to L/R Master Out <0.0025%
• Signal To Noise:  90dB
• Dynamic Range:  108 dB
• Front Panel Controls:  Mic/Line Gain x 12, Hi EQ x 12, Mid EQ x 12, Mid EQ Sweep x 8, Low EQ x 12, Aux Send 3 x 12, Aux Send 4 x 12, Mon 1/2 x 12, Mon Pan x 12, Channel Pan/Bal x 12, Channel Faders x 12, Group Faders x 2, L/R Fader, Mon Return x 2, Aux Return x 2, Solo Master, CR level, Phone level
• Front Panel Switches:  Chan/Mon reverse x 8, Direct Out Source x 4,75kHz x 8, Mute x 12, Solo x 12, Group Assign x 12, L/R Assign x 12,Aux Return L/R Assign x 2, Aux Return Group Assign x 2, Aux Return SIP x 2, Monitor Link to L/R, Group Link to L/R, Group Mono, CR Source select x 4.
• Rear/Top Panel Jacks:  Mic In on XLR x 8, Line In on balanced 1/4" x 8, Channel Inserts on 1/4" x 8, Stereo Channel In on 1/4" x 8, Stereo Aux Returns on 1/4" x 4, Aux Sends on 1/4" x 2, Group Outputs on 1/4" x 2, Group Inserts on 1/4" x 2, Main Outputs on 1/4" x 2, Main Inserts on 1/4" x 2, Tape Inputs/Direct Outputs on phono (RCA) x 16, Main Outputs on phono (RCA) x 2, 2-Track Tape Inputs on phono (RCA) x 2, Control Room outputs on 1/4" x 2, Monitor outputs on 1/4" x 2.
• Front Panel Headphone:  1/4" TRS
• Power Supply:  120VAC Internal Transformer
• Dimensions (WxHxD):  15" x 17" x 4.25"   (381mm x 432mm x 108mm)
• Weight:  14 lbs. (6.5kg)
• Comes with 2 mounting  bracks and power supply.

*Will ship only within U.S. via DHL Ground Service. Buyer must send Additional $28.00 for shipping and packaging.

*Shipped As/Is.

*In Great Condition.
