BOSS CE-2 CHORUS * VINTAGE * MADE IN JAPAN

€ 115

$ 130

€ 115 Sold For

Dec 30, 2008 Sold Date

Dec 20, 2008 Start Date

16 Number Of Bids

Belgium Country Of Seller

eBay Auctioned at

save auction

Description

This auction handles a fine :

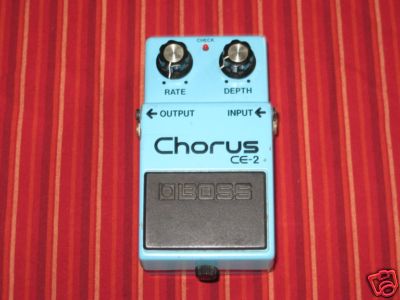

BOSS CE-2 CHORUS vintage MADE IN JAPAN green label serial number 740600

CE-2 Chorus

The CE-2 was the first compact pedal chorus from Boss. The CE-1 was released 1976 and contained the exact same circuit as the Roland Jazz Chorus JC-120 Amp. The CE-2 builds on the legacy of the CE-1 but isn't identical. The middle region is boosted in the CE-2 compared to the CE-1. According to the design engineers this may be because the CE-1 had a lower input impedance.

Roland says that they stopped marketing the CE-2 November 1982. The pedal was however still produced and sold at least out 1990. The label changed from black to green 1984. The CE-2 was produced in Japan up until 1988 when production moved to Taiwan.

Version differences

The CE-2 exists in both silver screw and black screw versions.
The font used on the "Chorus" label is wider on some versions. This results in the C in CE-2 to be located under the r in Chorus on the earliest models while it later ended up under the u.
The circuit has gone through some minor changes but nothing significant. All MIJ CE-2s are designed around the MN3007 BBD using MN3101 clock driver.

Specifications

Controls: Rate, Depth
Connectors: Input, Output, AC Adaptor
Current Draw: 9 mA (DC 9V)
Weight: 400 g. (14 oz)
Input Impedance: 470kOhm
Signal/Noise Ratio: 90dB or more
Recommended Load Impedance: 10kOhm or greater
Recommended AC Adaptor: ACA Series

Labels

Black - Made In Japan
Green - Made In Japan
Green - Made In Taiwan

The CE-2 was sold from October 1979 to November 1982.starting at 1 euro, worldwide shipping
combined shipping possible, check for rates.

Happy Bidding to all

-------------------------
